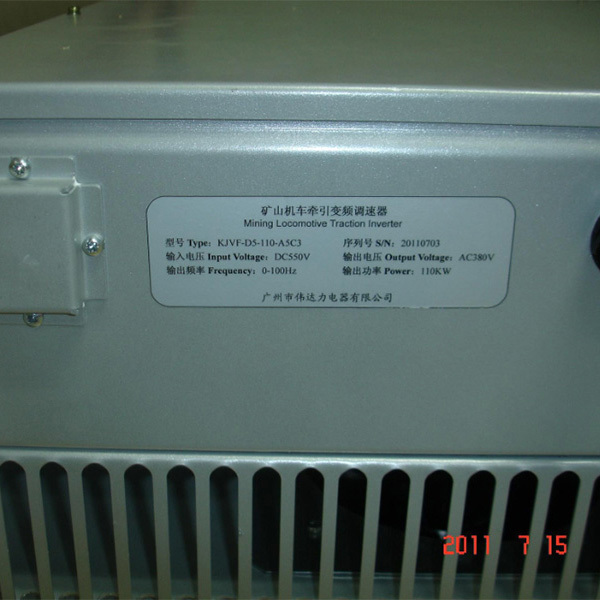

Special Frequency Converter for Traction of Mining Locomotives

The product hardware uses the latest product series from a well-known European company, combined with the application software specifically developed by our company for the working conditions of mine locomotives. The control method adopts current vector control, allowing the AC motor to achieve performance comparable to that of a DC motor. The product features strong adaptability, large low-speed starting torque, high reliability, good control performance, and maintenance-free operation.

(1) Control mode, using stepless speed regulation, with strong adaptability.

(2) Adapts to a wide range of voltage fluctuations, capable of meeting the special working conditions of mine locomotives where voltage fluctuates greatly and frequently pulls heavy loads, ensuring stable operation within a wide voltage fluctuation range.

(3) Quick automatic restart after power failure, with the inverter re-energizing and starting to run in less than 2 seconds.

(4) Synchronous control, with synchronous control functionality, keeping the output frequency of two inverters synchronized.

(5) Features automatic switching between single and dual machines. (Patent applied)

(6) The inverter has a built-in pre-charge circuit, eliminating the need for additional pre-charge devices, and includes pre-charge protection functionality. (Patent applied)

(7) Acceleration and deceleration times can be set in segments.

(8) Features zero-speed braking functionality, providing braking torque when the speed is set to zero after a given direction.

(9) Low-frequency output with high torque, the inverter can meet the requirements for low-speed starting under full load conditions for heavy vehicles, ensuring smooth starting and speed regulation.

(10) Comprehensive protection features including over-voltage, under-voltage protection, output overload, short circuit, phase loss, and inverter overheating protection.

(11) Modular design, with complete isolation between the power unit and control unit of the inverter, enhancing system reliability.

(12) Can add bus communication control for unmanned driving and other higher automation requirements for locomotives. The shell has a protection level of IP54, the PCB board is coated, and can be equipped with humidity control heaters to adapt to harsh environments such as high temperatures and humidity in mines.
